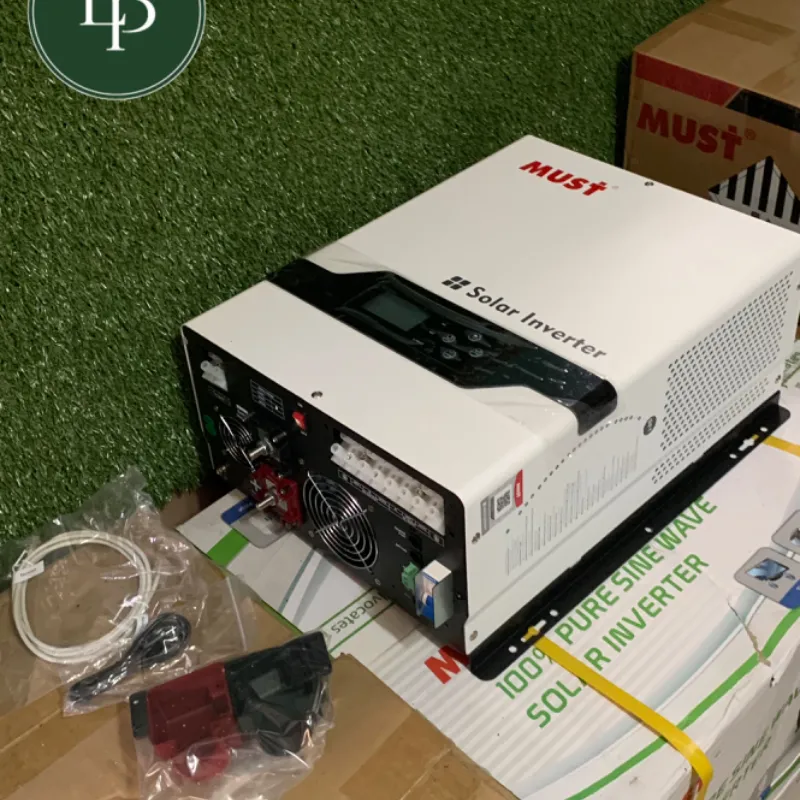

Inversor híbrido 3000w

Nuevo en caja

Loads distributing :

1. When only 120V loads, no 240V loads:

L1-N (120Vac) = 0-1500W, L2-N(120Vae ) = 0-1500 W

2.When only 240V loads, no 120V loads :

L1-L.2 (240Vac) = 0-3000W

3.If both have 120V and 240V loads :

L1-N (120Vac) = 0-1500W, L2-N(120Vac) =0-1500W,

L1-L2 (240Vac) = 3000W - Max power of loads

Warmly attention:

1.) For protecting machine, max. loads power not over

80% of each phase power.

2.) The Installation and maintenance must be carried out by qualified personnel.

SOLAR INVERTER

Model Name: PV3300

MD: PV33-3024 TLV

Operating Temperature: 0°C to +40°C

Protection Class: Class I

Protection Degree: IP 20

Inverter Mode:

Rated Power: 3000W

DC Input: 24VDC, 147A

AC Output: 110/220VAC 50/60Hz, 12.5A

AC Charger Mode:

AC Input: 220VAC 50/60Hz, 18A

DC Output: 24VDC 40A

Solar Charger Mode:

Rated Current: 80A

System Voltage: 24VDC

MPPT Voltage Range: 30-230VDC

Max. Solar Voltage (VOC): 245VDC

Max. Charge Current: 80A
